4*8 Feet Factory Cost Price Anti-skid Floor Plate Five Bar Embossed Aluminum Checked Plate
Product Details:
| Place of Origin: | China |
| Brand Name: | Xienuo Aluminum |
| Model Number: | 1050 1060 1070 1100 3003, 3004, 3005, 3105 5052, 5083, 5754, 5005, 6061,7075 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 ton |
|---|---|
| Packaging Details: | Waterproof paper, and steel strip packed. Standard Export Seaworthy Package.Suit for all kinds of |
| Delivery Time: | 15-25 days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 500,000 tons per year |
|
Detail Information |
|||
| Grade: | 1000 Series,Aluminum,6063 6061 5005 5052 7075 | Surface Treatment: | Coated,Embossed,Hairline,Polished,plain |
|---|---|---|---|
| Temper: | O-H112,T3-T8,Other,O,T351-T851 | Application: | Industry,Decoration,Construction,Signs,aircraft Structures |
| Type: | Plate,circle,Sheet,Coil | Width: | Customer Requirement,10mm~2500mm,1200mm,500mm-2800mm,600-2000mm |
| Thickness: | 0.2mm-200mm,0.15-300 Mm,0.10mm~500mm,0.45MM,0.5mm/1mm/1.5mm / 2mm / 3mm /4mm/5mm/etc. | Product Name: | Aluminum Alloy Plate,Trade Assurance Aluminum Sheet 5052 5053 5083 Aluminum Plate,Mirror Finish Anodized Aluminum Sheet For Solar Parabolic Reflector,Custom Blue 2mm Metal Anodized Aluminum Sheets Plates,3 Mm Thickness Perforated Metal Mirror Anodized Alum |
| Surface: | Customer Request,Smooth,Bright,polished,Hairline | Color: | Copper,champagne,gold,white,Natural Color |
| Material: | Aluminum Material,Aluminum Alloy Metal,Al5052,5005,5083 | Standard: | GB/T3880 ASTM B209,1100,EN,ASTM,AISI |
| Shape: | Flat Plate,Coil.sheet,Customized,Aluminum Sheet | Surface Finish: | Matte,sparkle,brushed,etc,pearlized |
| Keyword: | Sublimation Aluminum Photo Panel,aluminum Circle/aluminum Disc Ali Export,aluminum Sheet | Price Term: | CIF,FOB,CFR,FOB CIF CFR CNF,Ex-work |
| Protective Film: | PE Film | ||
Product Description

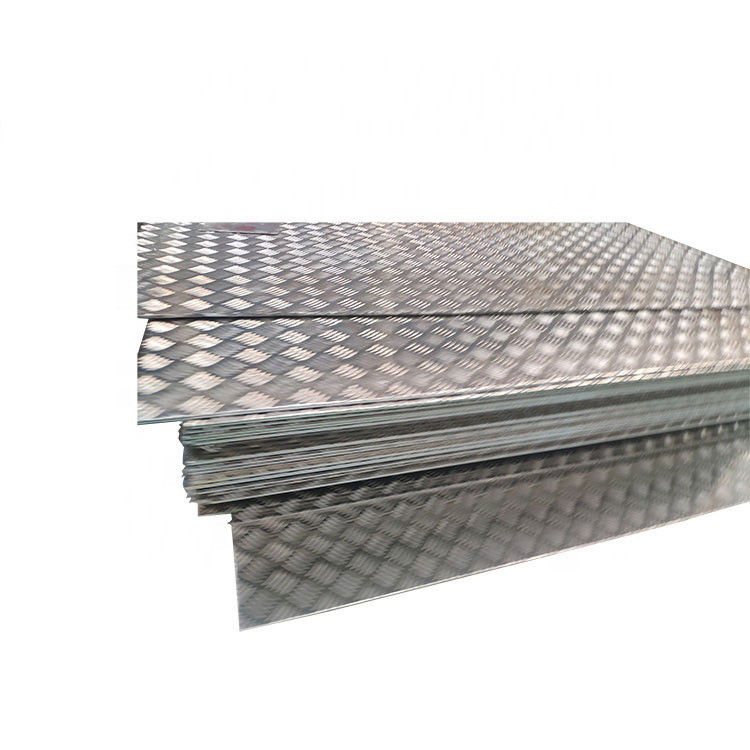

What is Aluminium Chequered Plate
The chequered aluminum plate has a beautiful appearance, good anti-slip performance and high strengthening performance.
Currently, it is widely used in transportation, construction, decoration, equipment peripheral base, machinery, shipbuilding and other fields.
In addition, it is also used in refrigerators, air conditioners, carriages, platforms, packaging pipes, screen frames, various hanging beams, table legs, decorative strips, handles, grooves and covers, chair pipes and other products.
Specification Of Aluminium Chequered Plate
| Aluminum Tread Plate | ||||||||
| Aluminium Alloy | 1050/1060/1100/3003/3105/5052/5754/5083/6061/8011 | Hardness | H14/H16/H18/H24/H32/O/T6 | |||||
| Thickness | 1.2mm-6.0mm | |||||||
| Width | 950mm-1650mm | |||||||
| Customerize Size | Size can be produced as per clients requirement | |||||||
| Width Tolerance | ±3.0mm | |||||||
| Surface finish | Bright, reflective | |||||||
| Production Process | Cold Rolled, Hot Rolled | |||||||
| Quality Standard | ASTM B209,EN573-1 | |||||||
| Material Quality | Tension levelled ,flat ,Free of defects like oil stain,Roll Marks,Waves,Dents scratches etc,A+++ quality, production process passed sgs and bv inspection | |||||||
| MOQ | 1 Ton/per size | |||||||
| Packing | Standard export worthy wooden pallets and standard packing is about 1 ton/pallet Pallet weight also can be as per client's requirement |
|||||||
| Thickness | Tolerance | Norminal pattern height | Tolerance |
| 1.2mm | +0.1/-0.07mm | 0.6mm | ±0.15mm |
| 1.4mm | +0.1/-0.07mm | 0.6mm | ±0.15mm |
| 1.6mm | ±0.12mm | 0.75mm | ±0.16mm |
| 2.0mm | ±0.15mm | 0.85mm | ±0.17mm |
| 2.5mm | ±0.20mm | 1.0mm | ±0.18mm |
| 3.0mm | ±0.20mm | 1.0mm | ±0.18mm |
| 4.0mm | ±0.45mm | 1.2mm | ±0.19mm |
| 5.0mm | ±0.5mm | 1.3mm | ±0.20mm |
| 6.0mm | ±0.5mm | 1.3mm | ±0.20mm |
| Chemicial Composition (%) | ||||||||||
| Temper | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | other | Al |
| 1060 | 0.20 | 0.25 | 0.03 | 0.03 | 0.03 | --- | 0.03 | 0.03 | 0.03 | Remain |
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | --- | 0.05 | 0.03 | 0.03 | Remain |
| 1070 | 0.2 | 0.25 | 0.04 | 0.03 | --- | --- | 0.04 | --- | 0.03 | Remain |
| 1100 | 0.95 | 0.05-0.2 | 0.05 | --- | --- | --- | 0.1 | 0.03 | Remain | |
| 3003 | 0.60 | 0.70 | 0.05-0.20 | 1.0-1.5 | --- | --- | 0.1 | --- | 0.15 | Remain |
| 3105 | 0.60 | 0.70 | 0.30 | 0.3-0.8 | 0.2-0.8 | 0.2 | 0.4 | --- | 0.15 | Remain |
| 5052 | 0.25 | 0.40 | 0.10 | 0.1 | 2.2-2.8 | --- | 0.1 | --- | 0.2 | Remain |
| 5182 | 0.20 | 0.35 | 0.15 | 0.2-0.5 | 4.0-5.0 | 0.1 | 0.25 | 0.1 | 0.2 | Remain |
| 5083 | 0.40 | 0.4 | 0.1 | 0.4-1.0 | 4.0-4.9 | 0.05-0.25 | 0.25 | 0.15 | 0.2 | Remain |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.3 | 0.2 | --- | 0.2 | Remain |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.2 | Remain |
| 8011 | 0.5-0.9 | 0-1.0 | 0.1 | 0.20 | 0.05 | 0.05 | 0.1 | 0.08 | 0.2 | Remain |
